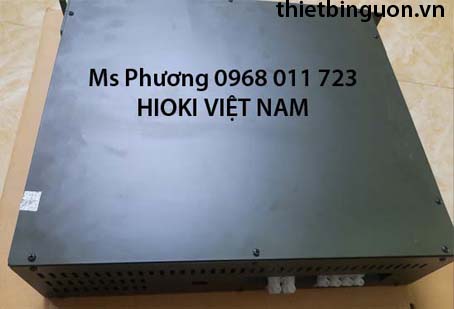

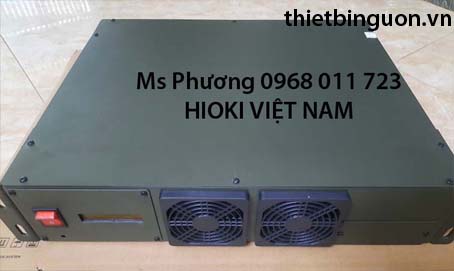

Converter 220VAC/220VDC/50A
Điệp áp vào: 220VAC
Dải điện áp vào AC: 165-265 VAC
Dải điện áp vào DC: 190-280 VDC
Điện áp ra: 220VDC
Dòng điện ra: 50A
Bảo hành: 12 Tháng
| MODEL | ALKO CONV220-50 |
| DC OUTPUT VOLTAGE | 220VDC |
| CURRENT RANGE | 50A |
| RATED POWER | 10KVA |
| VOLTAGE ADJ. RANGE | 220VDC +/- 5% |
| AC INPUT VOLTAGE RANGE | 220VAC ( 165-265VAC ) 50HZ ( 40-70HZ ) |
| EFFICIENCY | 92% |
| INRUSH CURRENT | 0-1 ADC |
| OVER LOAD | 100 ~ 105% rated output power |
| Protection type : Shut down o/p voltage,fe-power on to recovery |
| OVER VOLTAGE | 245VDC |
| Protection type : Shut down o/p voltage, re-power on to recover |
| OVER TEMPERATURE | 80°C ±5°C (TSW1) detect on heatsink of power transistor |
| Protection type : Shut down o/p voltage, recovers automatically after temperature goes down |
| WORKING TEMP. | -20 ~ +60°C (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing |
| STORAGE TEMP, HUMIDITY | -40 ~ +85°C , 10 ~ 95% RH |
| SAFETY STANDARDS | U60950-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC / 25°C / 70% RH |
| DIMENSION (H*W*D)(MM) | Tower 448*192*341 |
| WEIGHT (KG) |
|
