Bộ đổi nguồn 220VDC/220VAC/4000W
+ Input: 220VDC
+ Output: 220VAC
+ Công suất: 4000w
Rach: 19 inch

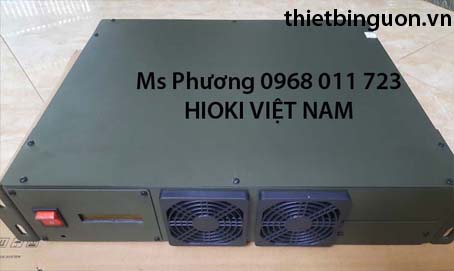

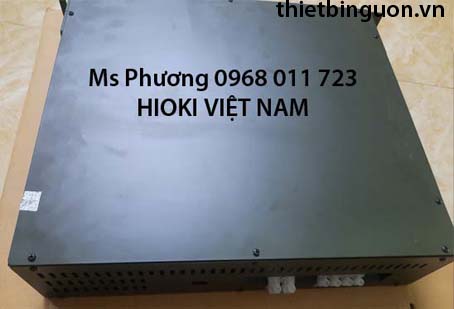

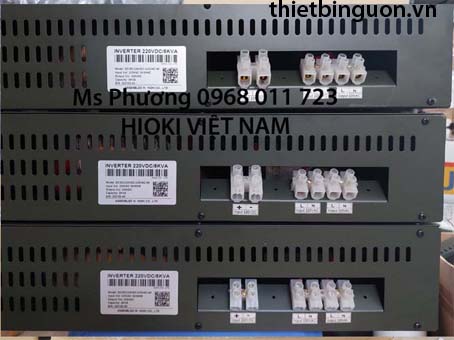

INVERTER ALKO 220VDC/220VAC
-
Pure sine wave output, available for sensitive load
-
High Ef
-
High power factor
-
Automatically transfer between battery and line modes
-
Microprocessor control guarantees high reliability
|
Model: ALKO |
Inv1000 |
Inv2000 |
Inv3000 |
Inv4000 |
Inv5000 |
Inv6000 |
|
Nominal Power |
1KVA/700W |
2KVA/1.4KW |
3KVA/2.1KW |
4KVA/2.8KW |
5KVA/3.5KW |
6KVA/4.2KW |
|
AC Input |
|
Phase & waveform |
Single phase & sinewave |
|
Voltage |
220VAC |
|
Acceptable Voltage |
194-243VAC\164-243VAC(wide mode) |
|
Frequency |
50Hz or 60Hz (auto sensing) |
|
Output |
|
Phase & waveform |
Single phase & sinewave(bypass mode sync to input) |
|
Voltage |
220VAC(bypass mode sync to input) |
|
Voltage Regulation |
±10%rms(bypass mode sync to input) |
|
Frequency |
50Hz±0.3Hz(bypass mode sync to input) |
|
Power Factor |
0.9-1.0 |
|
DC Input |
|
DC Input Voltage |
|
250VDC |
|
|
Minimum Start Voltage |
180VDC |
|
Low Battery Alarm 1 |
210VDC |
|
Low Battery Alarn 2 |
200VDC |
|
High Voltage Alarm |
250VDC |
|
Over High Voltage |
290VDC |
|
Transfer Efficiency |
|
line Mode |
>99% |
|
Battery Mode |
>80% |
|
power saver |
Available when the load is less than |
|
Indicators |
|
LED Display or LCD 1602 |
AC IN, Vol DC 220, Ac Out, Capaciy |
|
Audible Alarm |
Overload |
|
Protections |
low battery,over charging,over temp,over load |
|
Enviromental |
|
Operating Environment |
0-40C,0-90%RH(non-condensing) |
|
Audible Noise |
<60dB |
|
Net Weight(KG) |
|
|
|
|
|
|
|
Dimension,D X W X H(mm) |
Rack or Tower |
Rack or Tower |
