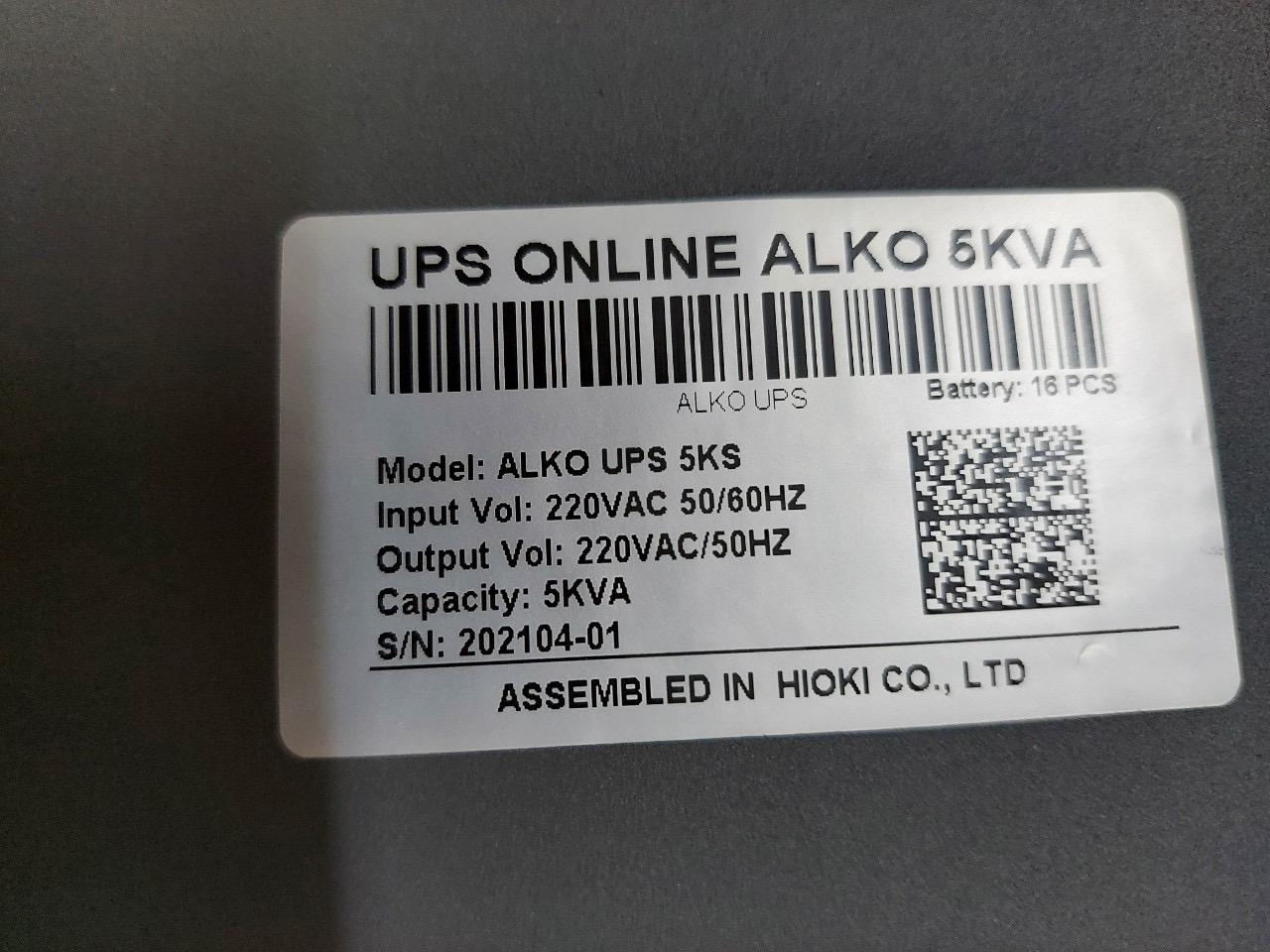

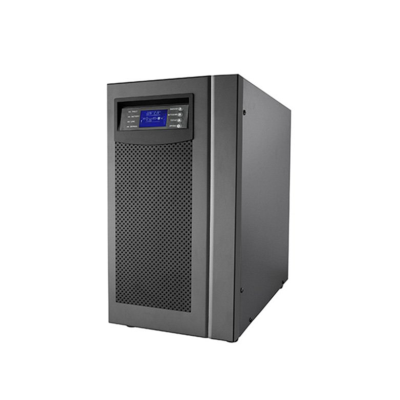

UPS ONLINE ALKO 5KVA
- Load power factor is 0.8, adaptive for the develplent trend fo electrical
- Equipment and the load capacity is more strong
- Active input power factor correction (PFC), input power factor is over 0.98
- Wide input voltage and frequency range, adaptive for extreme adverse grid environment of remote areas
- It can be connected with generators
- Zero transfer time effective ensures the safety and reliability of load operation
|
Specification |
Single Phase In & Out |
|
Rated output capacity |
5KVA/4KW |
|
Rated |
Rated voltage |
220VAC |
|
AC input |
Input voltage range |
120-275VAC±5 |
|
Input frequency range |
(45-55)±0.5Hz |
|
bypass voltage |
80VACx(1±5%)-285VACx(1±5%) |
|
Battery Input |
battery group voltage |
192V |
|
battery method |
Internal |
|
Battery capacity & quantity |
12VDC *16 (20PCS optional) |
|
backup time(half/full) |
half load≥10 minutes,full load≥5minutes(standard) |
|
maximum input current when power on |
<150% of rated current |
|
battery charging time |
5hours can charge to 90%(standard)
depend on the capacity of external battery group(long-running) |
|
AC output |
Output voltage |
220VAC±1%(invert output) |
|
Output frequency |
50±5Hz(when AC input is norma) 50Hz±1% (when ac inout is abnormal ) |
|
wave form |
sine wave THD<3%( linear load) sine waveTHD<8%(Nonlinear load) |
|
output power factor |
0.8 |
|
Overload Protection |
105-125% ,Transfer to Bypass after 1 Min |
|
Output current peak coefficient |
3:01 |
|
Transfer time between AC and Battery |
0ms |
|
Communication and monitoring functions |
RS232(can transfer to 485,Dry node,Smart slot(can expand to SNMP,SMS and other monitoring methods) |
|
Tower |
N.W(KG) |
55.72 |
|
G.W(KG) |
62.62 |
|
Unit Size(W X H X D)mm |
515*250*620 |
|
Carton Size(W X H X D)mm |
660*365*730 |
